One area that seems to be a common trouble spot as these cars get older is the plastic tail light lens that surrounds the trunk lock cylinder. The lens cracks and you start getting a tail light lens that fills with water. Replacement is not as hard as you might think. We’ve posted some photos and text showing the process.
-

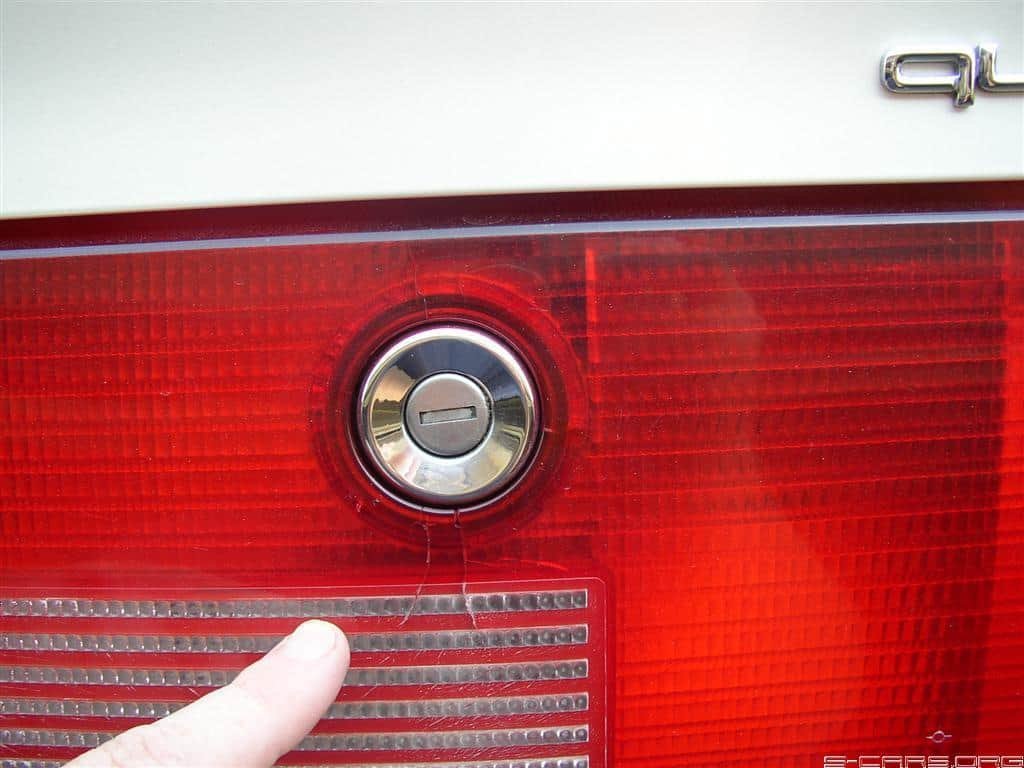

- Got cracks?
-

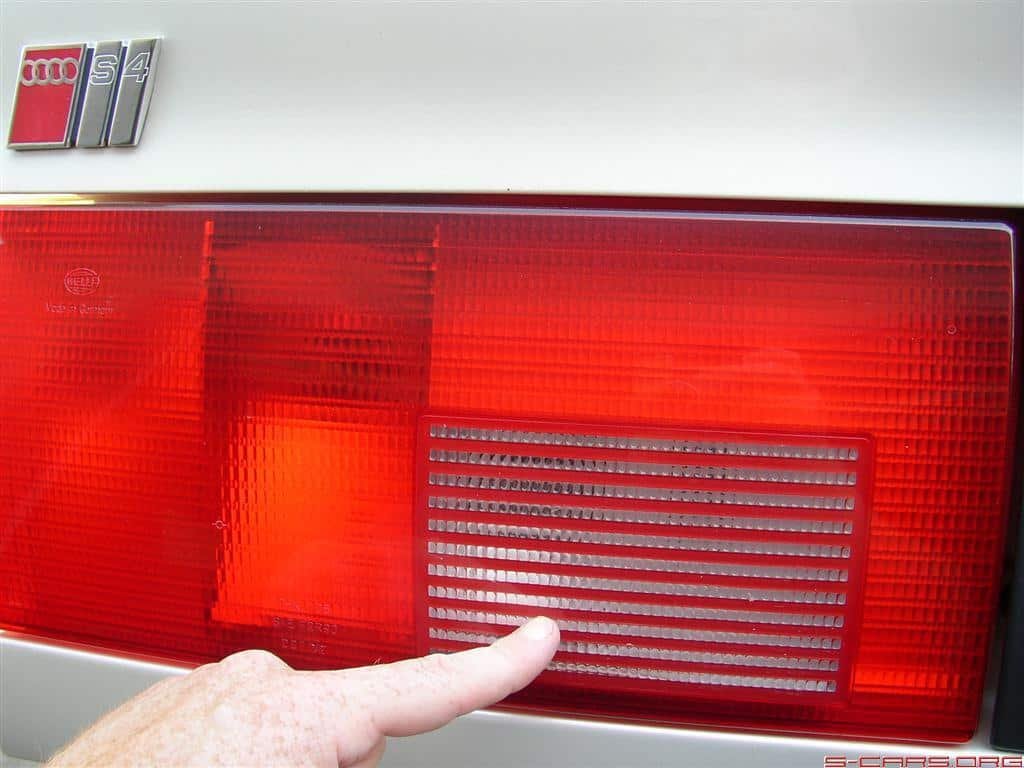

- Back up lights can fail due to water intrusion
-

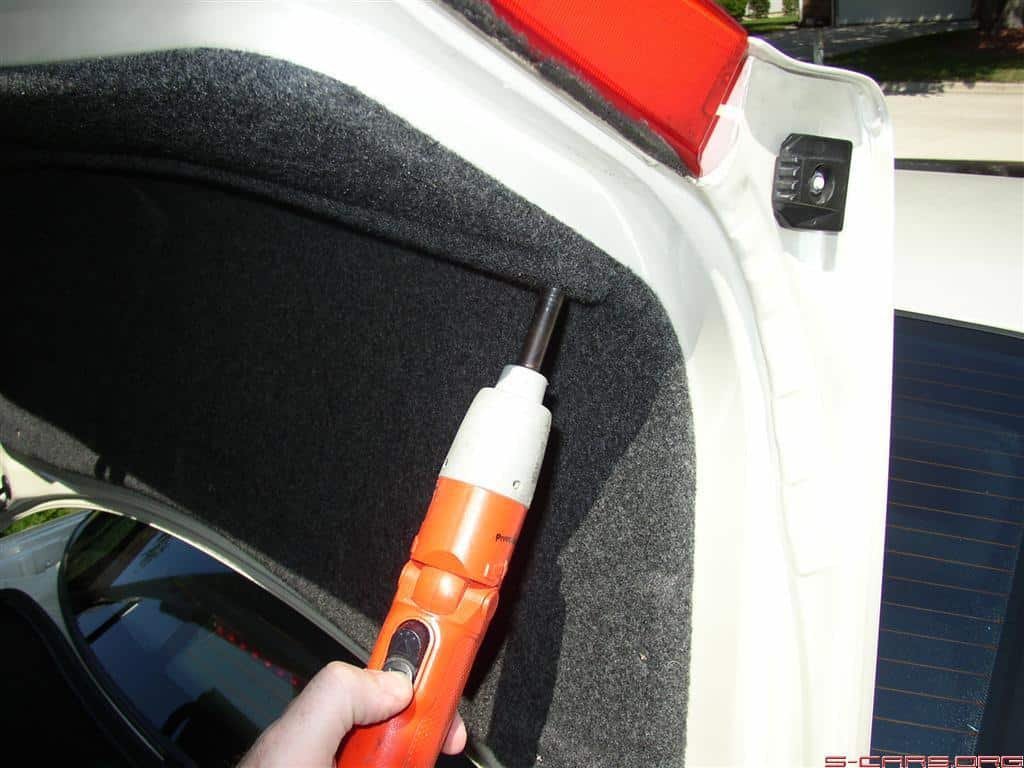

- Remove Trunk Liner Screws
-
- Remove Trunk Liner Screws
-

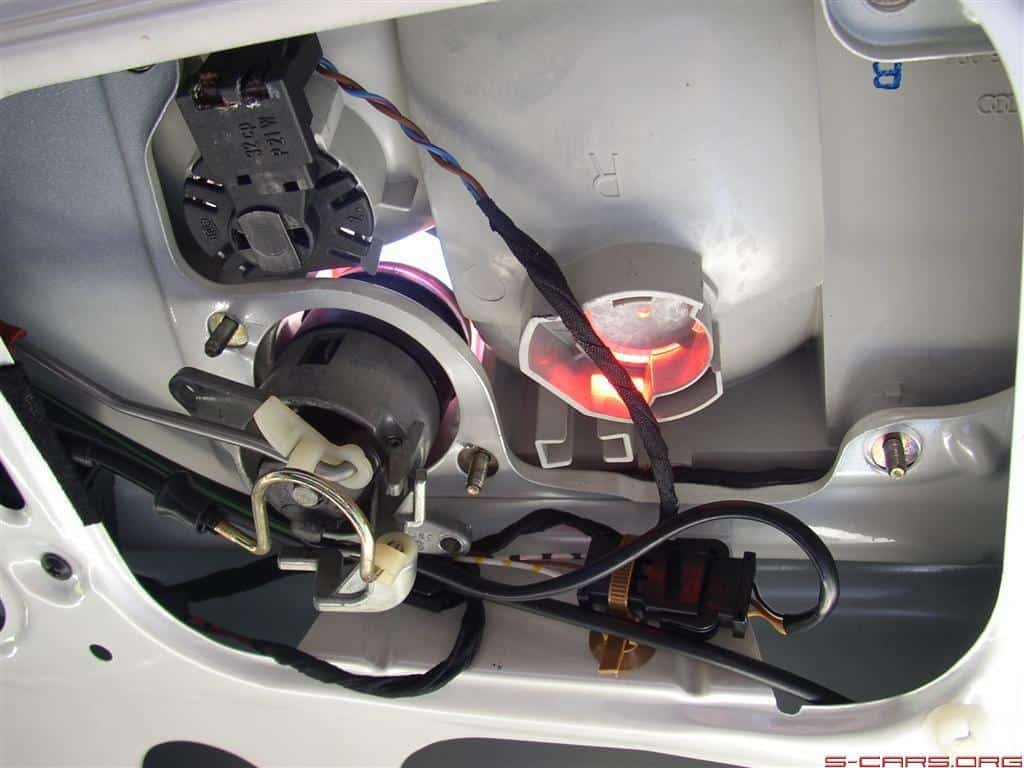

- Trunk Liner Removed
-
- Step 3: Remove the nuts from lock cylinder and tug
-
- Loosen the two 8mm nuts holding the trunk lock cylinder in place. Don’t completely remove them yet.
-
- Now loosen and remove the other three 8mm nuts holding the corners of the light in place.
-
- Twist to remove back up light…
-

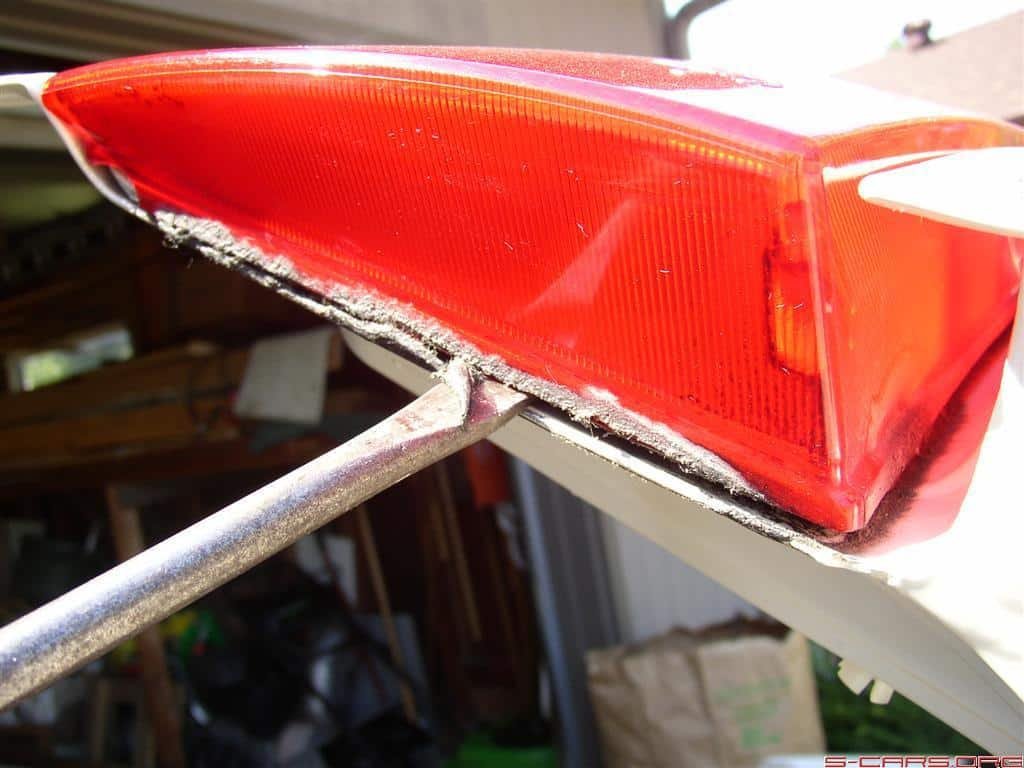

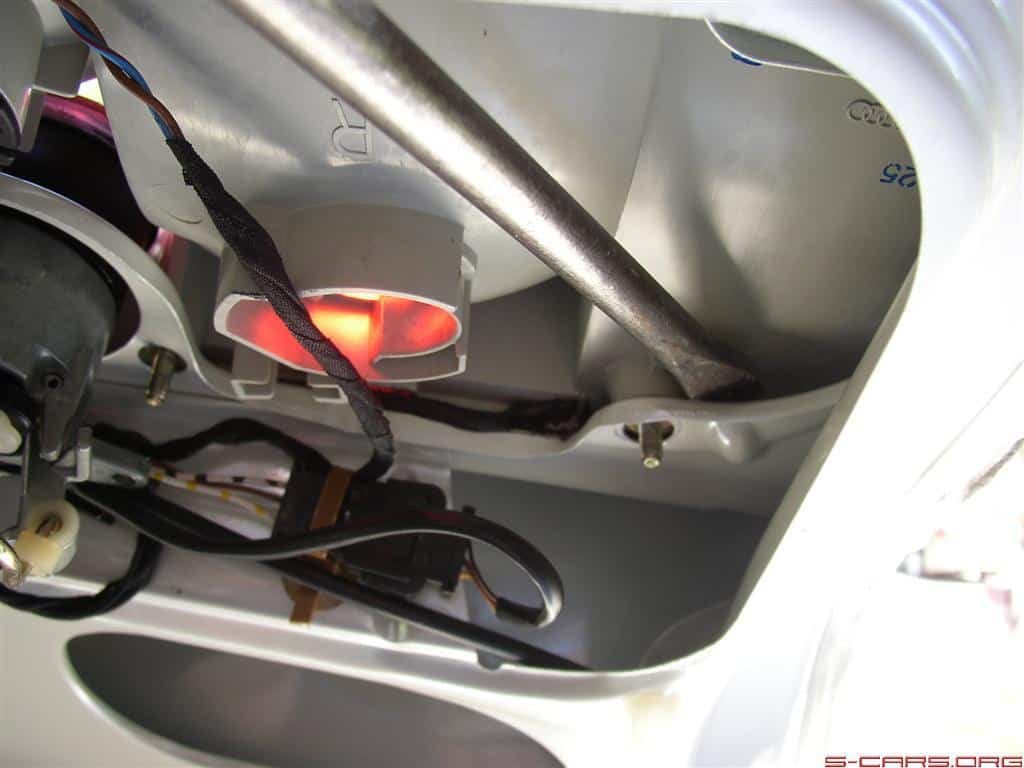

- Step 4: Pry carefully…
-
- Carefully work the edge… but don\’t force anything or you might crack the lens
-

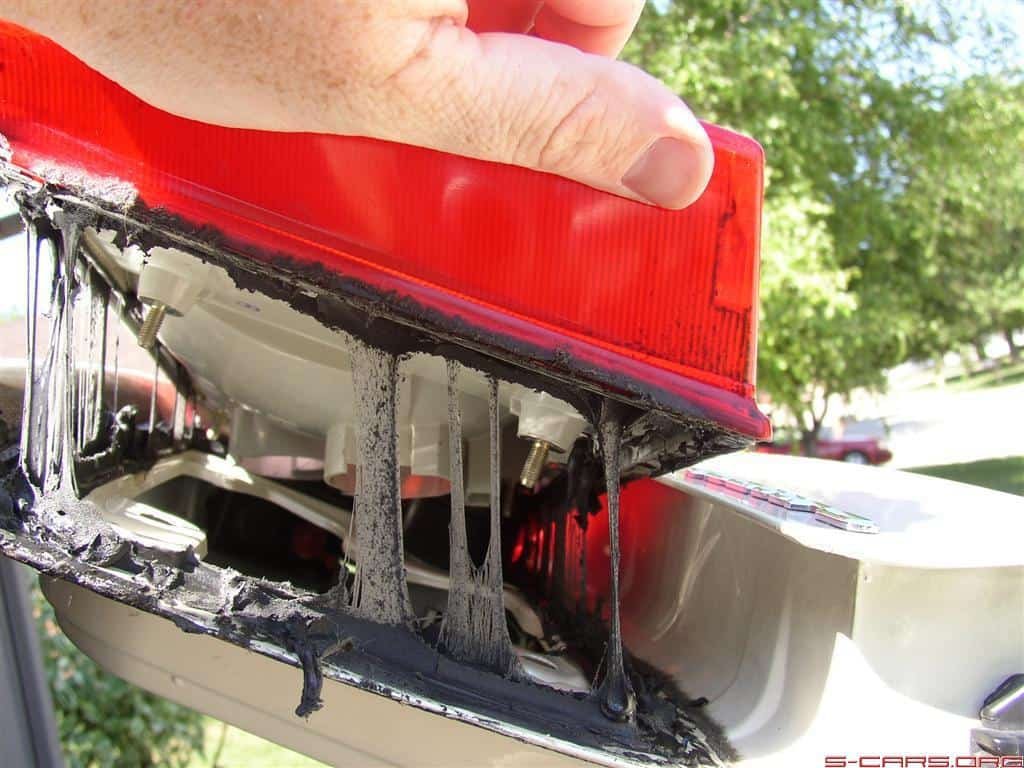

- We’re making a little progress
-
- Success!
-

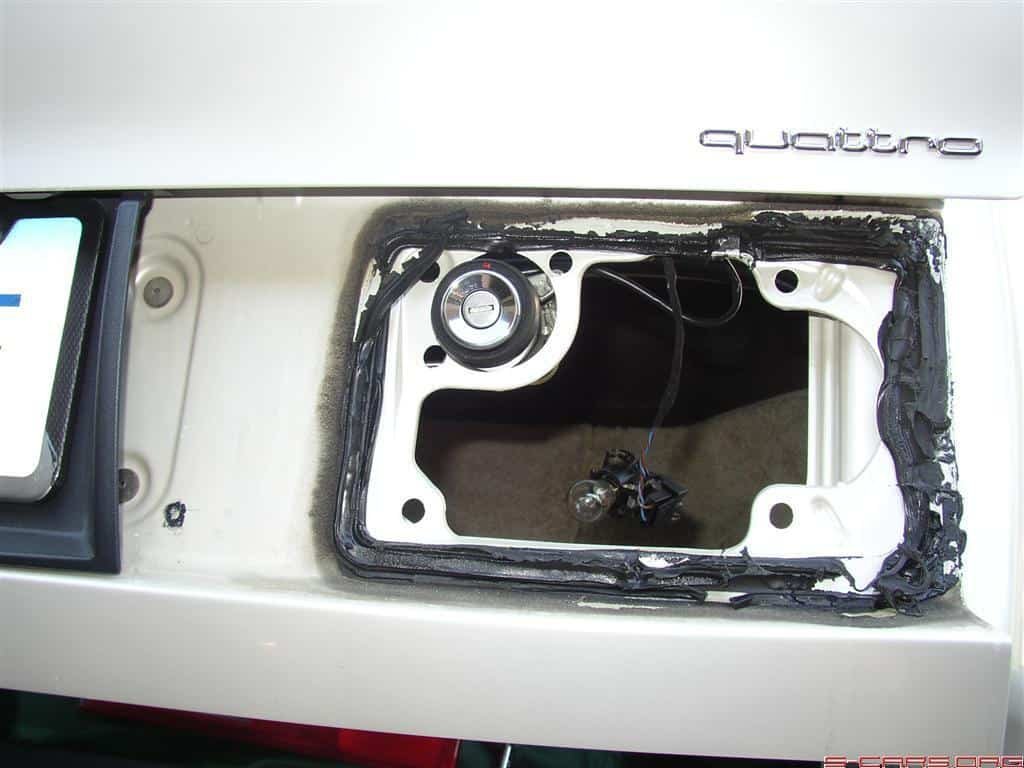

- A mess
-

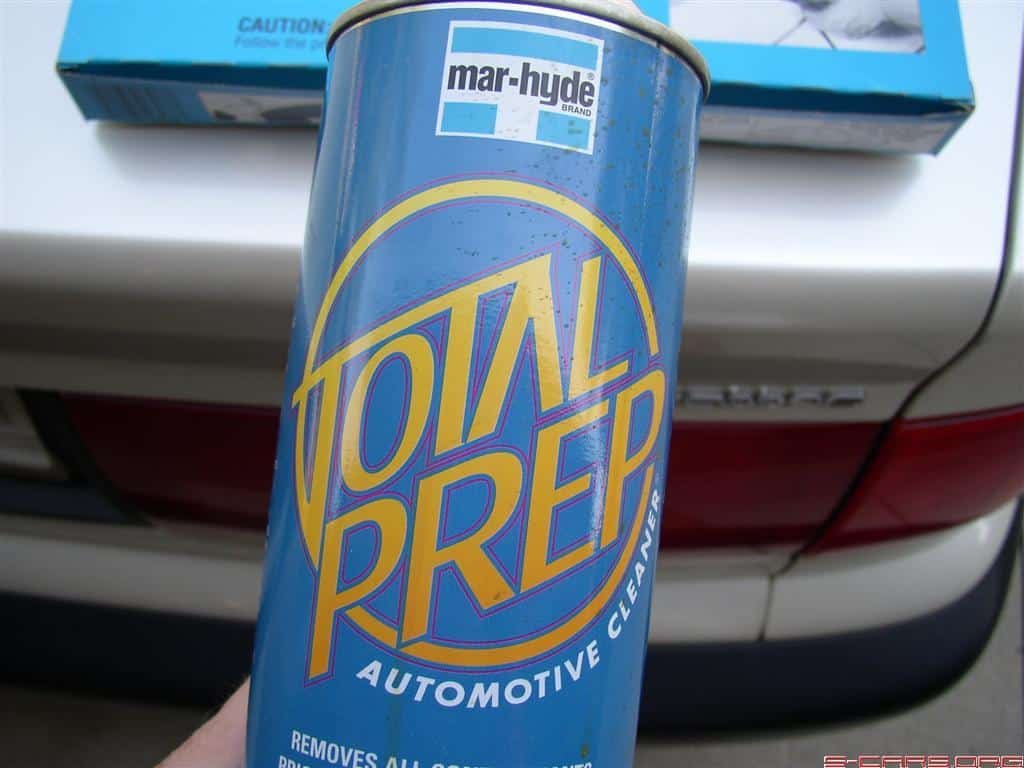

- Materials needed. Clean and re-seal
-
- 3M Strip Calk
-

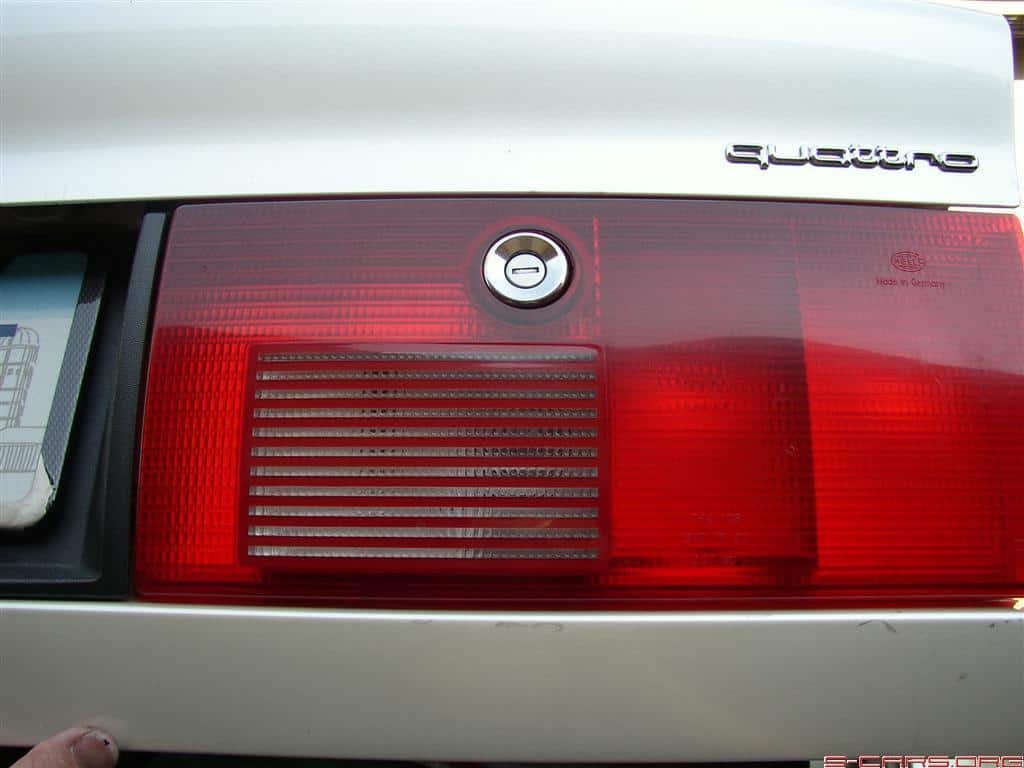

- Looking Good
